Std Pack Size
500
OUR P/N:
APEVFM205E02W-5

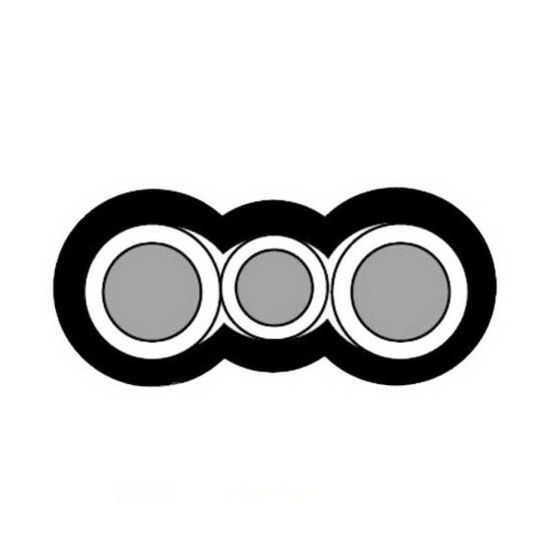

Flat Twin & Earth Cable, 2 Core & Earth, 2.5 mm, Annealed Copper, 450/750 Volt, 2.5 mm Earth Conductor, 12.6 mm x 5.6 mm Overall Diameter, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, PVC Insulation, PVC Sheath, Red Black Green/Yellow Cores, White Sheath, 90 deg C, AS/NZS 5000.2
Additional Information
| Brand | APEC |
|---|---|
| Standard Pack Size | 500 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | VFM205E02W-1 |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Black/Green/Yellow |
| Insulation Material | PVC |
| Insulation Thickness | 0.7 mm |
| Overall Diameter | 12.6 mm x 5.6 mm |
| Sheath Material | PVC |
| Sheath Thickness | 1 mm |
| Sheath Colour | White |
| Standards | AS/NZS 5000.2 |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 2.5 mm |
| Number of Cores | 2 Core + Earth |
| Earth Conductor Size | 2.5 mm |
| Product Type | Flat TPS Cable |
