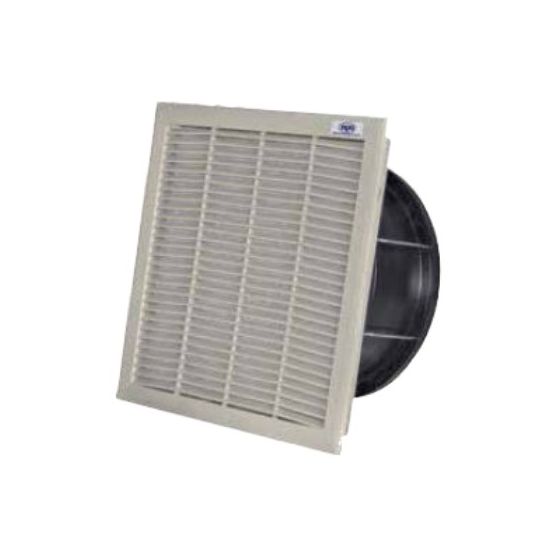

B&R Enclosure Fan Ventilator w/Filter 120 cu-m/hr 24 VDC RAL7032 Pebble Grey 250 Wx102 Dx250 H mm

Description

Enclosure Fan Ventilator With Filter, Flush Mount, ABS Plastic Grill, RAL7032 Pebble Grey, Powder Coated, -10 to 55 deg C, 250 mm Height, 250 mm Width, 102 mm Depth, 115-125m3/Hr 24 Volt DC

Key Specifications

Barcode (EAN-13)	9321228031142
SKU	B&RTX-FAN23UN0A
Brand	B&R
Range Name	Texa FAN
Product Type	Enclosure Ventilation

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The fan and filter ventilating units are reverisable to pressurise or evacuate air out of the enclosures as required Used together with the FIL filtering grills to expel air from the enclosure Protection rating IP44 Protection rating IP54 when used with optional filter Click-in fitting with no screws required Service life exceeds 45000 hrs of service Over current protection is built into the motor All fans are bearing supported and rated for 100 percent duty cycle
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	TX-FAN23UN0A
Colour	RAL7032 Pebble Grey
Depth	102 mm
Finish	Powder Coated
Height	250 mm
Material	ABS Plastic Grill
Mounting Method	Flush
Please Note	115-125m3/Hr 24 Volt DC
Temperature	-10 to 55 deg C
Width	250 mm
