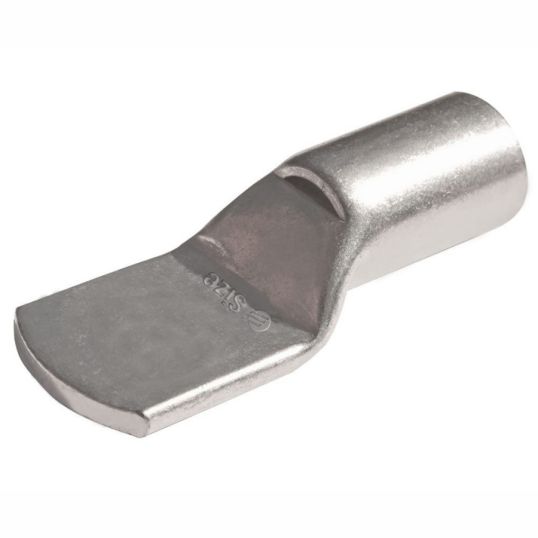

Name: Crimp Lug Standard Copper 120mm Blank Palm
SKU: CAACAL120
Availability: InStock

Skip to the beginning of the images gallery

Std Pack Size

OUR P/N:

CAACAL120

You need to be registered and logged in to view product details and pricing

Description

Crimp Lug, 120 mm, Blank Stud, Standard Barrel Type, 30 mm Barrel Length, 64 mm Overall Length, 37/2.03 Strands, 15.6 mm Inside Diameter, 29 mm Lug Width, 26 mm Lug Length, 5 mm Lug Thickness, 16.5 mm A-F Hex Die, HT130-C-120, 1 Crimps, 200 Mpa Tensile Strength, Annealed Copper Body, Annealed Copper, Tin Electroplated, 155 deg C

Specifications

Additional Information

Additional Information
Brand	Cabac
Range Name	Standard Lugs Copper
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CAL120
A-F Hex Die	16.5 mm
Barrel Type	Standard
Barrel Length	30 mm
Conductive Material	Annealed Copper
Body Material	Annealed Copper
Crimping Die	HT130-C-120
Finish	Tin Electroplated
Lug Length	26 mm
Inside Diameter	15.6 mm
Lug Width	29 mm
Lug Thickness	5 mm
Number of Crimps	1
Number of Strands	37/2.03
Overall Length	64 mm
Stud Size	Blank
Product Type	Fret Lugs
Temperature	155 deg C
Tensile Strength	200 MPa
Conductor Size	120 mm

Delivery and Returns

It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout.

Description

Technical Information TECHNICAL INFO

Specifications SPECS

Made from high conductivity annealed copper
Crimped with CABAC and MSS Power standard tooling and copper dies
Complies with AS4325.1

Crimp Lug Standard Copper 120mm Blank Palm

Cabac Crimp Lug Standard Copper 120mm Blank Palm 64mm OAL
