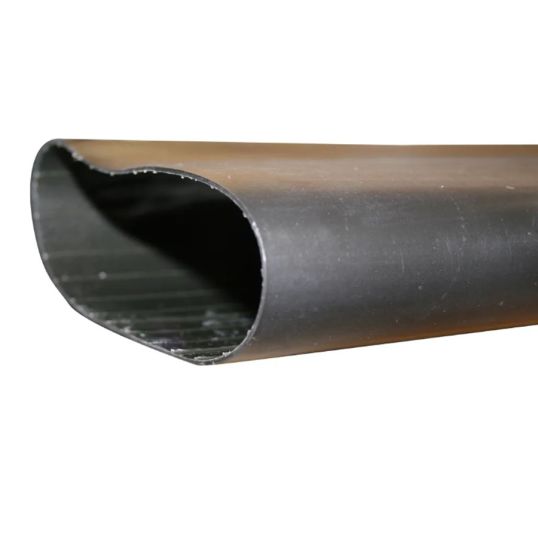

Cabac Medium Wall Heat Shrinkable Tubing Glue Lined 140-42mm 1.2m Length
Loading...
Description
SMDW/STDW flexible heat shrinkable tubing is made from radiation cross linked Polyolefin. Specially designed for insulating, protecting and sealing electrical connections and joints in medium and low-voltage cables. It is also resistant to chemicals, UV, moisture and oils.
Key Specifications
| Barcode (EAN-13) |
9318674798378
|
|---|---|
| SKU |
CAASMDW140/42TK
|
| Brand |
Cabac
|
| Range Name |
SMDW Tubing
|
| Product Type |
Heatshrink Tubing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121700 |
| UOM | MTR |
| Vendor Product | SMDW140/42TK |
| Colour | Black |
| Elongation | 350% |
| Dielectric Strength | 12 kV/mm Wall Thickness |
| Lining Type | Adhesive Lined |
| Material | Cross-Linked Polyolefin |
| Shrink Diameter From | 140 mm |
| Shrink Diameter To | 42 mm |
| Tensile Strength | 12 MPa |
| Shrink Temperature | 105 to 135 deg C |
| Temperature | -55 to 110 deg C |
| Shrink Ratio | 3-1 |
| Voltage | 0.6/1 kV |
| Wall Thickness Recovered | 3.3 mm |
| Wall Type | Medium |
