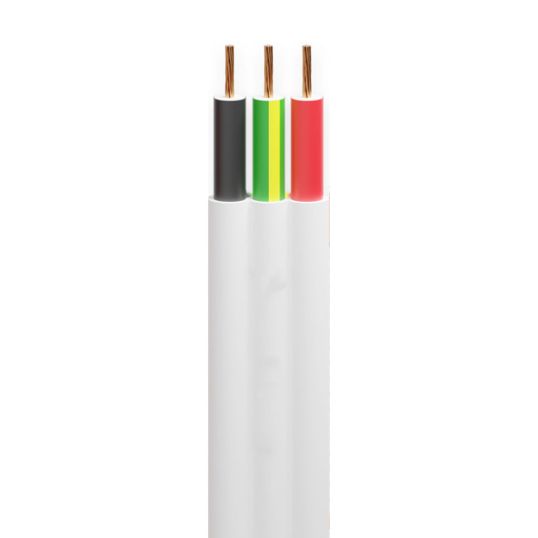

Flat Twin & Earth Cable, 2 Core & Earth, 2.5 mm, Plain Annealed Copper, 450/750 Volt, 2.5 mm Earth Conductor, 12.4 mm x 5.6 mm Overall Diameter, 50 mm Bend Radius, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 7.41 Ohm/km, AC: 9.01 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red Black Blue White Green/Yellow Cores, Black Sheath, 75 deg C
Additional Information
Brand | Electra |
---|---|
Standard Pack Size | 1 |
UNSPSC Class | 26121600 |
UOM | MTR |
Vendor Product | SRF3025V-BLK |
Bend Radius | 50 mm |
Conductor Type | Annealed Copper |
Conductor Resistance | DC: 7.41 Ohm/km AC: 9.01 Ohm/km |
Core Colours | Red/White/Blue/Black/Green/Yellow |
Insulation Material | V-90 PVC |
Insulation Thickness | 0.7 mm |
Overall Diameter | 12.4 mm x 5.6 mm |
Sheath Material | 3V-90 PVC |
Sheath Thickness | 1 mm |
Sheath Colour | Black |
Temperature | 75 deg C |
Voltage | 450-750 Volt |
Conductor Size | 2.5 mm |
Number of Cores | 2 Core + Earth |
Earth Conductor Size | 2.5 mm |
Product Type | Flat TPS Cable |
