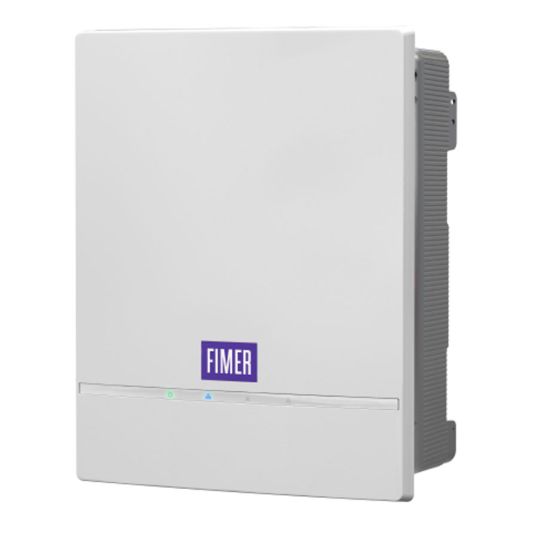

Fimer SPA String Inverter 2 MPPT 3 Phase 10000W 2x17A

chevron-left
loader
Loading...

Description

chevron-down
Solar Inverter, 3 Phase, 10200 Watt DC Input, 1100 Volt DC Input, 200-1000 Volt DC Operating, 460-850 Volt DC MPPT Voltage Range, 250-500 Volt (Default 360 Volt) DC Start-up, 2 x 17 Amp DC Max. Input, 2 MPPTs, 10000 Watt AC Output, 10000 VA AC Max. Apparent, 50/60 Hz AC Operating, 16 Amp AC Output, >0.995, 0.8-1 Inductive/Capacitive Power Factor, <3% Harmonic Distortion, 98.4% Efficiency, 98.1% European Weighted Efficiency, Grid Connected, Double Stage, Transformerless, 4000 mtr (Derating Above 2000 mtr) Max. Altitude, Double Ethernet Port, WLAN, RS485 Port Communication Port, Natural Cooling Cooling, PV Quick Fit Connector/AC Quick Fit Connector Connection, Bracket Mounting, IP65, 4K26 (IEC 60721-3-4), -25 to 60 deg C (Derating Above 45 deg C), 4-100% Condensing Relative Humidity, 568.2 mm Height, 473.6 mm Width, 207 mm Depth, 29.6 kg, EC 61683, EN 50530, IEC 62116, IEC 61727, AS/NZS 4777.2, IEC/EN 62109-1, IEC/EN 62109-2, EN 61000-6-1, EN 61000-6-2

Key Specifications

chevron-down
SKU
FIM3Q009902000F
Brand
Fimer SPA
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product 3Q009902000F
AC Max. Apparent Power 10000 VA
AC Operating Frequency 50/60 Hz
AC Output Power 10 kW
Connection Type PV Quick Fit Connector/AC Quick Fit Connector
Communication Port Double Ethernet Port/WLAN/RS485 Port
Climate Category 4K26 (IEC 60721-3-4)
AC Output Current 16 Amp
Cooling Method Natural
DC Input Power 10200 Watt
DC Input Voltage 1100 Volt
DC Operating Voltage 200-1000 Volt
DC MPPT Voltage Range 460-850 Volt
DC Start-up Voltage 250-500 Volt (Default 360 Volt)
DC Max. Input Current 2 x 17 Amp
Depth 207 mm
Efficiency 98.40%
European Weighted Efficiency 98.10%
Height 568.2 mm
IP Rating IP65
Max. Operating Altitude 4000 mtr (Derating Above 2000 mtr)
Mounting Method Bracket
Number of MPPTs 2
Operating Temperature -25 to 60 deg C (Derating Above 45 deg C)
Phase 3 Phase
Power Factor >0.995 0.8-1 Inductive/Capacitive
Relative Humidity 4-100% Condensing
Topology Grid Connected Double Stage Transformerless
Total Harmonic Distortion <3%
Width 473.6 mm
