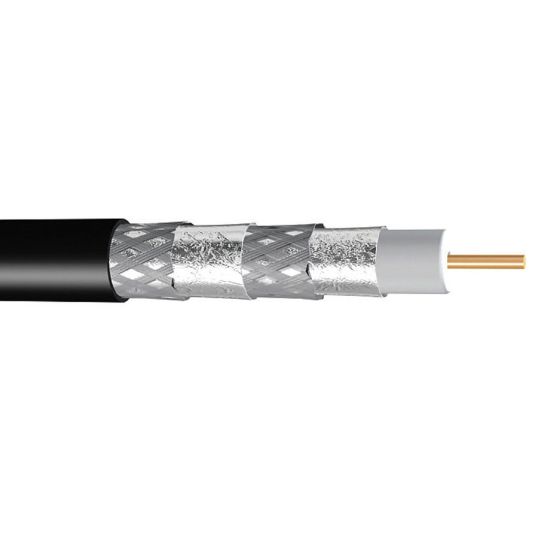

Name: RG6 Coax Cable Quad 1.02mm PVC Black 305M
SKU: MAT06MM-E6QB
Availability: InStock

Skip to the beginning of the images gallery

Std Pack Size

305

OUR P/N:

MAT06MM-E6QB

You need to be registered and logged in to view product details and pricing

Description

RG6 Coaxial Cable Quad Shield, Inner: 1.02 +/-0.01mm, Outer: 4.78 +/-0.13mm Conductor Diameter, Bend Radius: Single: 35mm, Typical: 70mm, Adhesion Force: >20 N, Pulling Tension: 200 N, Insulation Resistance: >1x10 power of 4 MOhm.km, Capacitance: 54 pF/mtr, 75 +/-3 Ohm Impedance, Al-Mg Alloy Wire Braid, Physically Foamed PE Insulation, Fire Resistant PVC or PVC Sheath, Non-Bonded Aluminium/PET/Aluminium Tape Screen, Black Sheath, 7.54 +/-0.2mm Overall Diameter, 305 mtr Length,-40 to 70 deg C

Specifications

Additional Information

Additional Information
Brand	Matchmaster
Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	06MM-E6QB
Product Type	Quad Shield Cable
Sheath Colour	Black
Overall Diameter	7.54 +/-0.2mm
Capacitance	54 pF/mtr
Temperature	-40 to 70 deg C
Sheath Material	Fire Resistant PVC
Length	305 mtr
Screen Material	Non-Bonded Aluminium/PET/Aluminium Tape
Pulling Tension	200 N
Conductor Diameter	Inner: 1.02 +/-0.01mm/Outer: 4.78 +/-0.13mm
Bend Radius	Single: 35mm/Typical: 70mm
Braid Material	Al-Mg Alloy Wire
Insulation Resistance	>1x10 power of 4 MOhm.km
Insulation Material	Physically Foamed PE

Delivery and Returns

It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout.

Description

Technical Information TECHNICAL INFO

Specifications SPECS

An RG6 metre marked cable with quadshielding
Suitable and approved for Pay and Digital TV

RG6 Coax Cable Quad 1.02mm PVC Black 305M

Matchmaster Digimatch RG6 Coaxial Cable Quad Shield 1.02mm PVC Black 305M
