Std Pack Size
100
OUR P/N:
MMCCEB02PFIMW7/0.67

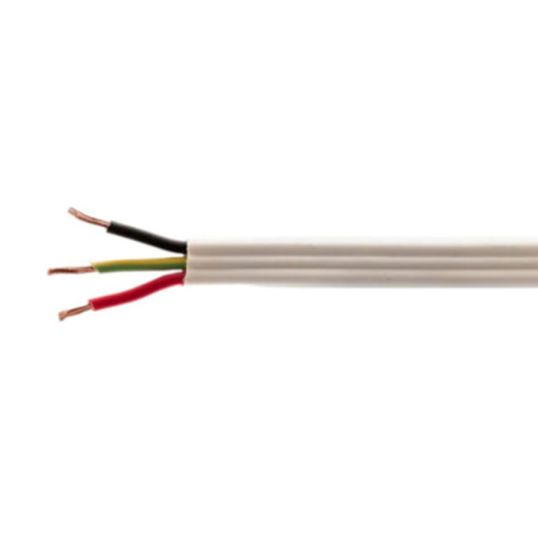

Flat Twin & Earth Cable, 2 Core & Earth, 2.5 mm, Plain Annealed Copper, 450/750 Volt, 7/0.67 mm Strands, 2 mm Nominal Diameter, 2.5 mm Earth Conductor, 12.4 mm x 5.5 mm Overall Diameter, 20 mm Bend Radius, 0.7 mm Insulation Thickness, Conductor Resistance: DC: 7.41 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red Black Green/Yellow Cores, White Sheath, 90 deg C, AS/NZS 5000.2
Additional Information
| Brand | Prysmian |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20201111 |
| Bend Radius | 20 mm |
| Conductor Type | Annealed Copper |
| Conductor Resistance | DC: 7.41 Ohm/km |
| Core Colours | Red/Black/Green/Yellow |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.7 mm |
| Nominal Diameter | 2 mm |
| Overall Diameter | 12.4 mm x 5.5 mm |
| Sheath Material | 3V-90 PVC |
| Sheath Colour | White |
| Standards | AS/NZS 5000.2 |
| Stranding | 7/0.67 mm |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 2.5 mm |
| Number of Cores | 2 Core + Earth |
| Earth Conductor Size | 2.5 mm |
| Product Type | Flat TPS Cable |
