Std Pack Size
1
OUR P/N:
OLX7/050-3A1

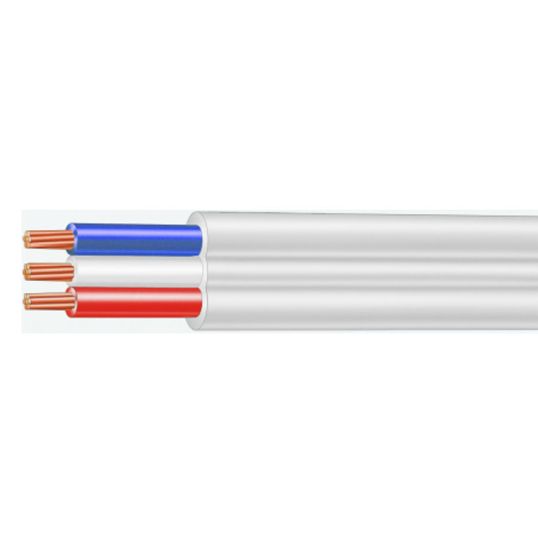

Flat Cable, 3 Core, 1.5 mm, Stranded Copper, 450/750 Volt, 9.9 mm x 4.5 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Conductor Resistance: DC: 13.6 Ohm/km, AC: 16.5 Ohm/km, Insulation Resistance: 14 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Blue White Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2
Additional Information
| Brand | Olex |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | EACP05A1003WVAA |
| Conductor Type | Stranded Copper |
| Conductor Resistance | DC: 13.6 Ohm/km AC: 16.5 Ohm/km |
| Core Colours | Red/Blue/White |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.6 mm |
| Insulation Resistance | 14 MOhm/km |
| Overall Diameter | 9.9 mm x 4.5 mm |
| Sheath Material | PVC |
| Sheath Thickness | 0.9 mm |
| Sheath Colour | White |
| Standards | AS/NZS 1125 AS/NZS 5000.2 |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 1.5 mm |
| Number of Cores | 3 Core |
| Product Type | Flat TPS Cable |
