Std Pack Size
100
OUR P/N:
OLX7/104-2RBA1

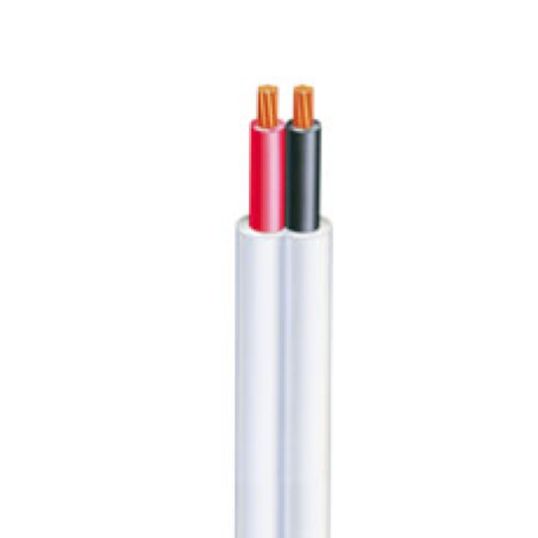

Flat Twin Cable, 2 Core, 6 mm, Stranded Copper, 450/750 Volt, 7/1.04 mm Strands, 11.6 mm x 6.9 mm Overall Diameter, 0.8 mm Insulation Thickness, 1.1 mm Sheath Thickness, Conductor Resistance: DC: 3.08 Ohm/km, AC: 3.75 Ohm/km, Insulation Resistance: 9.9 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Black Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2
Additional Information
| Brand | Olex |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CACP11A1002WVAA |
| Conductor Type | Stranded Copper |
| Conductor Resistance | DC: 3.08 Ohm/km AC: 3.75 Ohm/km |
| Core Colours | Red/Black |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Insulation Resistance | 9.9 MOhm/km |
| Overall Diameter | 11.6 mm x 6.9 mm |
| Sheath Material | PVC |
| Sheath Thickness | 1.1 mm |
| Sheath Colour | White |
| Standards | AS/NZS 1125 AS/NZS 5000.2 |
| Stranding | 7/1.04 mm |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 6 mm |
| Number of Cores | 2 Core |
| Product Type | Flat TPS Cable |
