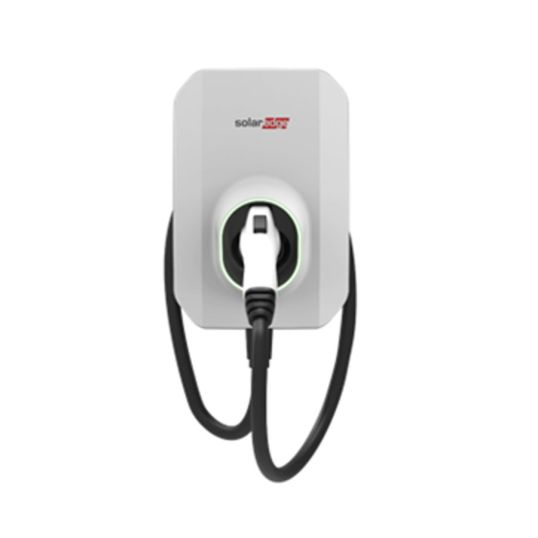

SolarEdge Home EV Charger Kit and 7.6m cable 7.4kW T2

$Solar_Edge\SolarEdge_SE-EV-SA-KIT-LM32.jpg$

Description

AC Electric Vehicle Charger Home, 230 Volt Input Voltage, 32 Amp Input Current, 50/60 Hz Input Frequency, 7.4 kW Power Output, 1 Phase Phase, Type 2 Connector, 7.6 mtr Cord Length, IP54, -10 to 50 deg C, 5-95% Relative Humidity, CE Marked, EMC Directive 2014, 30, EU, IEC 61851-1/62196-2, EN 55032/61000-3/61000-4, IEC 61851-21-2, IEC 61851-1, 309 mm Height, 190 mm Width, 154 mm Depth, 8 kg

Key Specifications

SKU	SLRSE-EV-SA-KIT-LM32
Brand	SolarEdge
Product Type	Home EV Charger and Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wi-Fi enabled, level 2 charging station, with up to 32 Amp (7.4 kW) charging power Control and monitor via app - including remote operations, smart scheduling and charging history Industry Leading 3 years warranty Rated for indoor and outdoor use Suitable for use with or without a Solaredge PV system Optimized charging when connected to a SolarEdge inverter Charges EV with up to 100% renewable energy by using excess solar mode
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	SE-EV-SA-KIT-LM32
Certifications	CE Marked EMC Directive 2014 30 EU IEC 61851-1/62196-2 EN 55032/61000-3/61000-4
Cord Length	7.6 mtr
Connector Type	Type 2
Depth	154 mm
Height	309 mm
Input Current	32 Amp
Input Voltage	230 Volt
Input Frequency	50/60 Hz
IP Rating	IP54
Item Weight	8 kg
Phase	1 Phase
Operating Temperature	-10 to 50 deg C
Relative Humidity	5-95%
Power Output	7.4 kW
Standards	IEC 61851-21-2 IEC 61851-1
Width	190 mm
