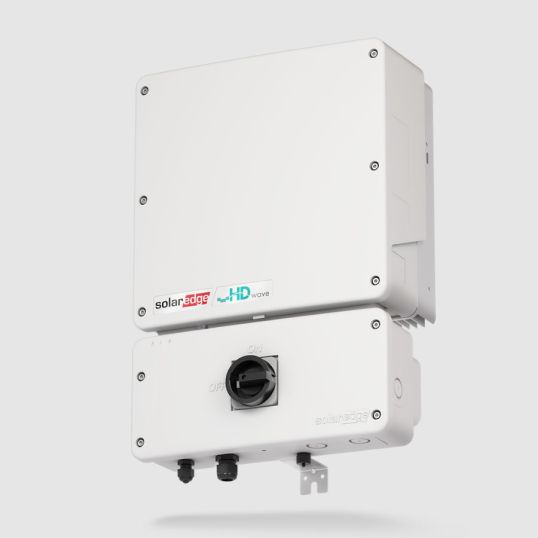

SolarEdge Solar Inverter HD-Wave Genesis Single Phase 10kW

$Solar_Edge\SolarEdge_SE10000H-AUL00BEU4.jpg$

Description

Solar Inverter, 1 Phase Phase, 20000 Watt DC Input, 480 Volt DC Input, 400 Volt DC Nominal, 25.5 Amp DC Max. Input, 10 kW AC Output, 10000 VA AC Max. Apparent, 184-264.5 Volt AC, 220-230 Volt, 50/60 Hz +/-5, 45.5 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.992 Efficiency, 0.99 European Weighted Efficiency, 3000 mtr Max. Altitude, RS485 Ethernet Wi-Fi (Optional), Natural Convection Cooling, <50 dBA, Wall Mounting, IP65, -40 to 60 deg C

Key Specifications

SKU	SLRSE10000HAUL00BEU4
Brand	SolarEdge
Range Name	Genesis
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Simple string design for inverter up to 5 kW AC Faster, simpler installation with maximum design flexibility Record breaking inverter efficiency for more energy production Specially designed to work with SolarEdge power optimiser for higher energy yield Battery ready solution supporting On-Grid storage IP65 rated suitable for outdoor & indoor installation Rapid inverter commissioning via Smartphone using SetApp Advanced safety features including SafeDC and integrated arc fault protection Compact, lightweight and easy to install Supports Wi-Fi communication(Sold separately)
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE10000H-AUL00BEU4
AC Max. Apparent Power	10000 VA
AC Nominal Voltage	220-230 Volt
AC Operating Frequency	50/60 Hz +/-5
AC Output Power	10 kW
Communication Port	RS485 Ethernet Wi-Fi (Optional)
AC Output Current	45.5 Amp
AC Operating Voltage	184-264.5 Volt AC
Cooling Method	Natural Convection
DC Input Power	20000 Watt
DC Input Voltage	480 Volt
DC Nominal Voltage	400 Volt
DC Max. Input Current	25.5 Amp
Depth	185 mm
Efficiency	0.992
European Weighted Efficiency	0.99
Height	540 mm
IP Rating	IP65
Max. Operating Altitude	3000 Mtr
Mounting Method	Wall
Noise Level	<50 dBA
Operating Temperature	-40 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Total Harmonic Distortion	<3%
Width	370 mm
