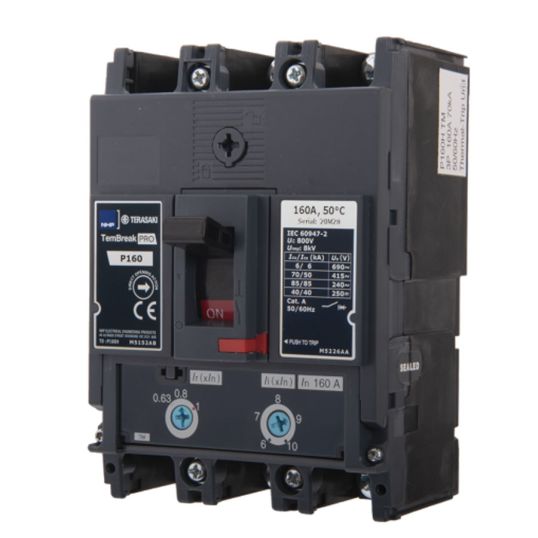

Terasaki TemBreak Pro Moulded Case Circuit Breaker 100A 36kA 3P 415VAC 63-100A Thermal Magnetic Trip

$Terasaki\Terasaki_P160F23100TM.jpg$

Description

Moulded Case Circuit Breaker, 415 Volt AC, 100 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 3 Pole, 63-100 Amp Thermal Setting, 600-1200 Amp Magnetic Setting, 160 AF Frame, Thermal Magnetic Trip, Screw Terminal, DIN-Rail Mount, 70 deg C, 130mm Height x 90mm Width x 95.5mm Depth

Key Specifications

SKU	TERP160F23100TM
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Complies to AS / NZS 60947-2, IEC 60947-2 and CE Panel mount standard, with other mounting options 1, 2, 3 or 4 pole versions Suits XAP chassis, with panelboard options Fault ratings: 25, 36, 50, 70, 125 or 200 kA Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P160F23100TM
Current	100 Amp
Depth	95.5 mm
Frame Type	160 AF
Frequency	50/60 Hz
Height	130 mm
Interrupt Capacity	36 kA
Magnetic Setting	600-1200 Amp
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	70 deg C
Terminal Type	Screw
Thermal Setting	63-100 Amp
Trip Type	Thermal Magnetic
Voltage	415 Volt
Width	90 mm
